    DAF Systems & Technical Specifications

    FC Maximizer and Unimax systems from 20 to 11,000 GPM — every one custom-engineered, American-fabricated, and backed by full commissioning and service support.

    Our Product Line

    Find Your System

    DAF Corp's FC Maximizer and Unimax product lines span the full range of flow requirements — from compact pre-treatment units to large-scale custom clarifiers for industrial and municipal facilities. Every system begins with laboratory analysis of your wastewater.

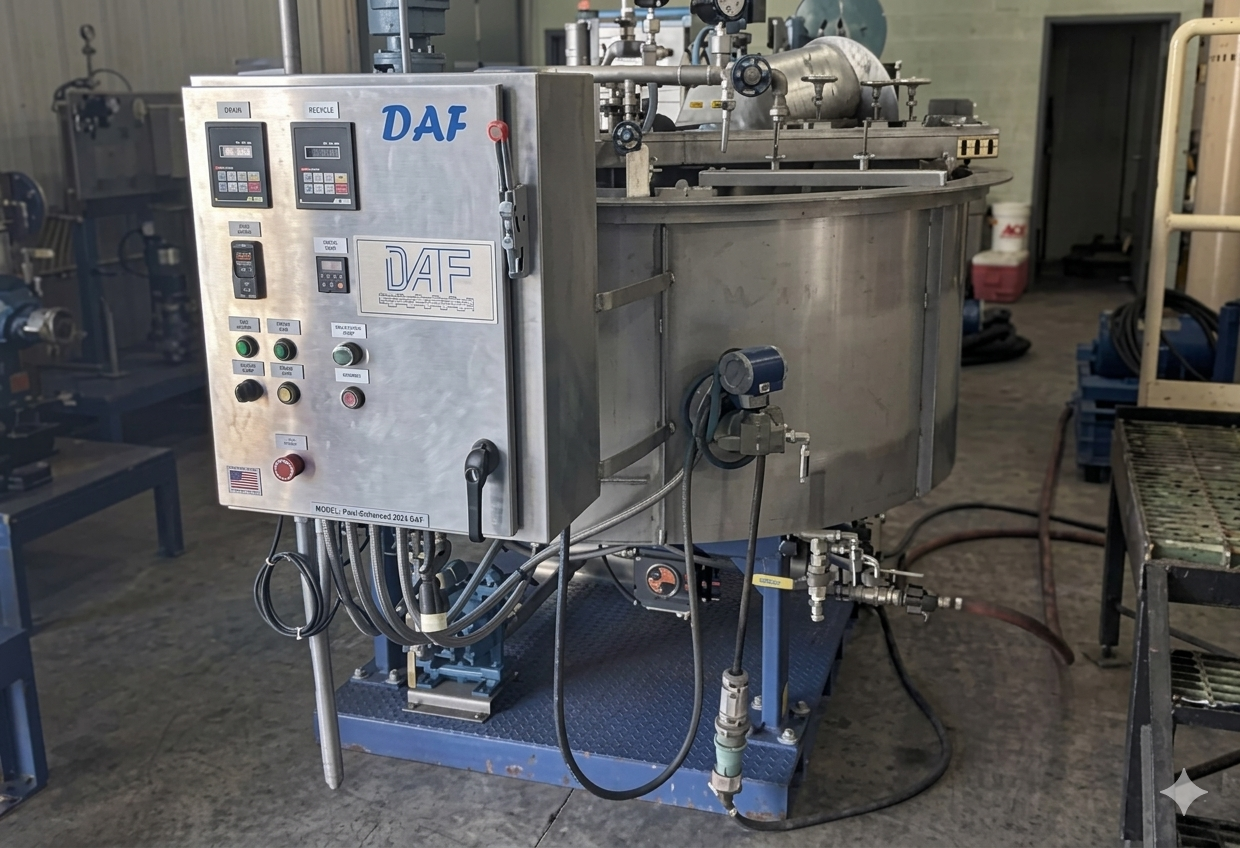

    FC Maximizer Small DAF system
    FC Maximizer — Small

    FC Maximizer Small

    20–300 GPM

    Purpose-built for smaller processors, specialty food operations, on-site pre-treatment, and pilot installations. Full micro-bubble performance in a compact, skid-mounted, pre-wired package requiring minimal site preparation.

    • Pre-assembled skid-mounted design
    • 304 stainless steel construction standard
    • Integrated chemical feed system
    • Suitable for indoor or outdoor installation
    • Factory-tested before shipment
    • DAF Corp micro-bubble generator included
    Request Specs
    FC Maximizer Standard DAF system
    FC Maximizer — Standard

    FC Maximizer Standard

    300–2,000 GPM

    The most common configuration for mid-size food processing, dairy, beverage, and municipal applications. Fully configurable tank geometry, skimmer design, and chemical feed matched to your specific wastewater profile and permit requirements.

    • Rectangular flotation tank design
    • Programmable logic controller (PLC) standard
    • Adjustable recycle ratio and skimmer speed
    • Available in carbon steel or stainless steel
    • NEMA-rated electrical enclosures
    • Full SCADA integration available
    Request Specs

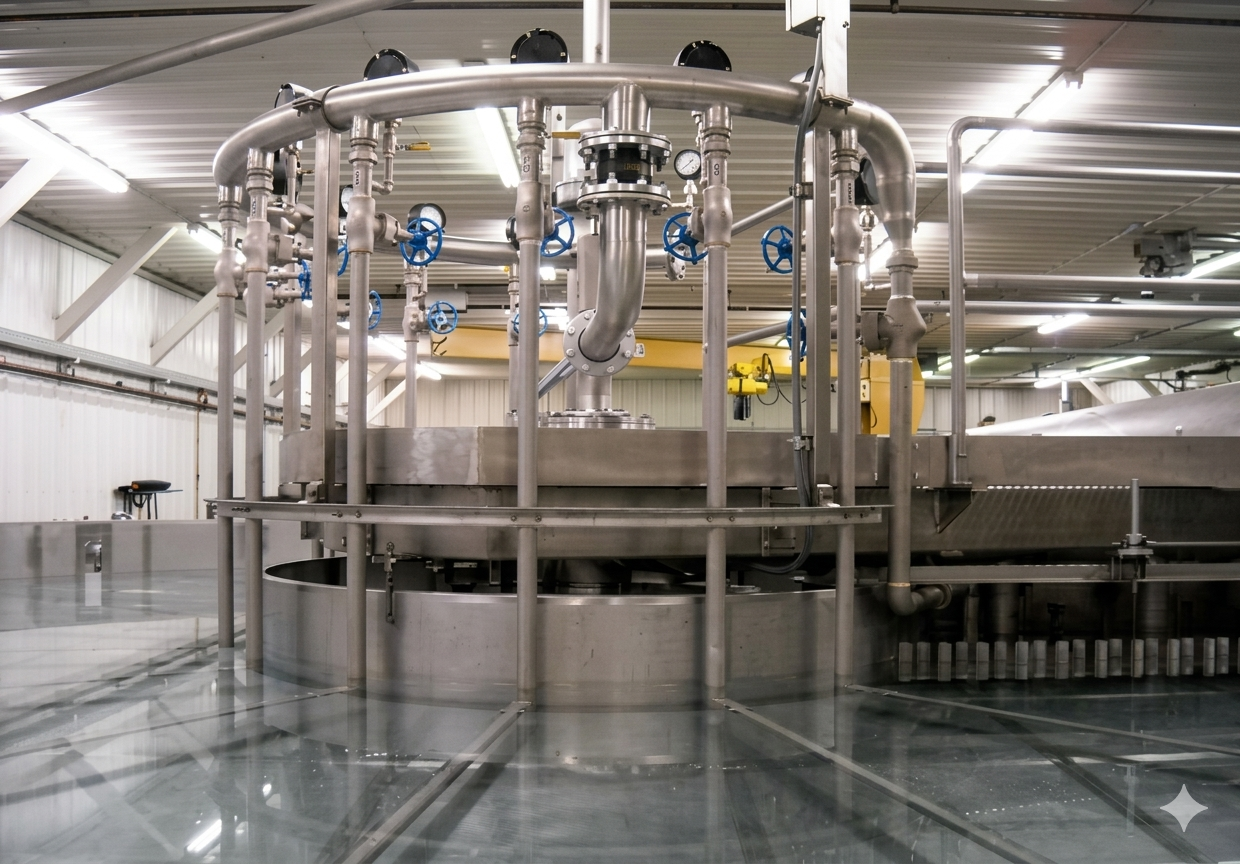

    FC Maximizer Large DAF system installed
    FC Maximizer — Large

    FC Maximizer Large

    2,000–11,000 GPM

    For large food processing complexes, rendering facilities, major municipal plants, and industrial applications with high solids loading, demanding discharge permits, or 24/7 continuous operation requirements.

    • Multi-zone flotation tank design
    • High-capacity rotating flight skimmer
    • Dual pressurization systems for redundancy
    • Full engineering drawings and P&IDs provided
    • On-site installation and commissioning included
    • Operator training program standard
    Request Specs
    Unimax custom DAF system
    Unimax — Custom

    Unimax

    20–1,000 GPM

    Our most configurable mid-flow platform — purpose-engineered for applications requiring custom tank geometry, elevated solids loading, or multi-stage clarification within a compact, skid-mounted footprint.

    • Custom rectangular clarifier configurations
    • Parallel multi-train designs available
    • Hydraulic modeling and CFD analysis included
    • Seismic, wind, and site-specific structural design
    • Compliance documentation for permit submittals
    • Dedicated project manager through commissioning
    Request Specs

    FC Maximizer Installation Sizes

    Compare dimensions for FC 40 through FC 700. The largest listed model carries 11,950 GPM of total hydraulic flow or 8,850 GPM of process flow when 25% capacity is reserved for recycle.

    View Technical Data
    Side-by-Side

    System Comparison

    Every FC Maximizer and Unimax system ships with our core micro-bubble technology. The differences between configurations are about scale, integration options, and application complexity.

    DAF system tier feature comparison
    Feature
    FC Maximizer Small
    20–300 GPM
    FC Maximizer Standard
    300–2,000 GPM
    FC Maximizer Large
    2,000–11,000 GPM
    Unimax
    20–1,000 GPM
    Micro-bubble technology (10–30μm)
    Custom coagulation chemistry
    Lab analysis & jar testing
    American fabrication
    Factory testing pre-shipment
    PLC controls standardOptional
    SCADA integrationOptionalOptional
    On-site installation includedOptional
    Operator training programBasic
    Hydraulic CFD modeling—OptionalOptional
    Dedicated project manager—Optional
    Long-term service agreementOptionalOptionalOptional
    How to Choose

    Sizing Your DAF System

    The right system size depends on three primary variables. Here is how to think about each one — and why laboratory analysis is always the definitive starting point.

    Flow Rate

    Your peak daily flow rate is the primary sizing variable. Size your DAF for peak flow — not average — to ensure the system can handle seasonal or shift-based surge conditions without overloading the flotation zone.

    • › Measure peak hourly flow, not daily average
    • › Account for cleaning-in-place (CIP) surge flows
    • › Consider future capacity expansion needs
    • › Ask us about equalization tank options

    Solids Loading

    TSS concentration, FOG levels, and suspended solids characteristics determine how much float sludge your system generates per day and how aggressively the skimmer must operate. High-solids streams need more recycle volume and larger sludge handling capacity.

    • › TSS concentration (mg/L) is critical for design
    • › FOG content drives chemical dosing requirements
    • › Sludge volume affects downstream handling needs
    • › Our lab analysis quantifies all of these

    Effluent Target

    Your discharge permit's effluent requirements determine system configuration. Stricter TSS, FOG, or BOD limits may require higher recycle ratios, longer contact zones, polishing filtration, or chemical-enhanced primary treatment upstream of the DAF.

    • › Share your permit limits at project kickoff
    • › We design to your limits — not generic targets
    • › Polishing filtration available for tight limits
    • › Documentation for compliance submittals included
    Get Your Specifications

    Request a System Specification

    Tell us about your application and we will return a detailed system specification, performance data, and budgetary pricing — typically within 3 business days.

    We respond to all specification requests within 3 business days. Your information is never shared with third parties.

    What Happens Next

    1. 1

      We Review Your Submission

      An engineer reviews your application details within 1 business day. We may follow up with a brief call to clarify flow rates or wastewater characteristics before proceeding.

    2. 2

      System Specification Prepared

      We size the right system model for your flow rate and application, then prepare a detailed specification sheet with performance projections and budgetary pricing.

    3. 3

      Delivered Within 3 Business Days

      Your specification package arrives by email. No obligation, no pressure — just the engineering data you need to move your project forward with confidence.

    Not Sure Where to Start?

    Start With a Free Lab Analysis

    Send us a wastewater sample and our engineers will characterize your specific contaminants, recommend the optimal coagulant chemistry, and size the right DAF system for your application — before you commit to anything.

    Contact Our Engineers
