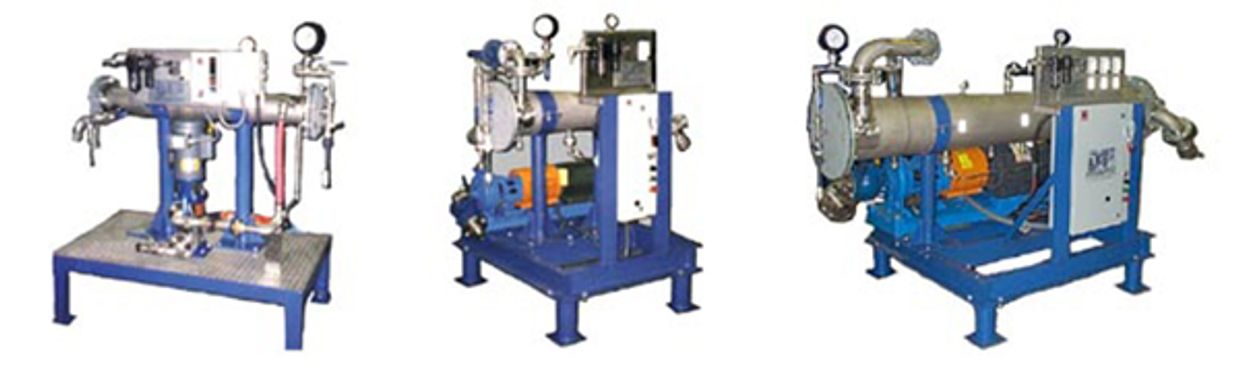

FINE MICRO BUBBLE GENERATOR SYSTEMS

---

• Over 25 years of continuous innovation design changes.
• Most economical micro bubble generator in the marketplace
• Operates at 1/3 electrical HP compared to others
• All wetted parts 304 SS
• One year unlimited warranty
• Fabricated to ASME Standards
• Unprecedented Quality and Workmanship
• Eliminates costly polymer usage
• User friendly
• Utilizes a very small amount of compressed air
• Ideally situated for oil and grease flotation
• Easy to operate

We are introducing to the marketplace for sale, the best Micro Bubble Generator in the industry. Our AMT's innovative, unique, proprietary  micro bubble generator can save you money. Its production of micro  bubbles are very  abundant. Our AMT produces all equal sized micro  bubbles. It is very, very important you do not have large bubbles  coalescing with small bubbles in water, retarding your DAF clarifier  operation. It produces in water 20 to 40 micron bubbles in size  consistently 24/7, 365 days. It consumes 1/3 less electric motor HP than  others use. Its pressure pump can be ordered single phase 220 or 3-phase 440/480. It can be manually adjusted to produce ultra fine, equally sized bubbles. Most bubble generators produce a combination of  large and small sized  bubbles, our AMT micro bubble generator does not.  Large and small bubbles coalesce in water, thus producing a  percolating tank surface. Your DAF Clarifier becomes a chemical eater at your expense. It is paramount in your clarified tank for uniform size  micro bubbles for  particulate floating buoyancy. Your results will be  less polymer usage,  increased analytical removal and larger skimming  float volume if you  utilize one of our AMT micro bubble generators.  Guaranteed.

• Old or New Flotation Clarifiers
•  API Separators
•  Sludge Thickener
• Oil frac tanks with great results


Note:
Our AMT will improve the clarified water volume clarified efficiency of any clarifier 2 to 3 times more clarified water output.


•  Easy To Operate
•  Easy Flow Adjustments
• Constructed of 304L S/S

•  Minimal Installation Time
•   Fits and installs easily to pipe connects and electrical hook ups
•  Low floor loading 150#/sq ft
•  Easy to retrofit to any existing clarifier


Air Dissolving  Mixing Tubes/Micro Bubble  Generators Exceed Normal Treatment Standards


Sold as pre-packaged retro-fit modules or individual tubes. Can be installed vertically or horizontally

We offer a lot of great reasons to select an Air Mixing micro bubble  generator from DAF Corp for your next fine bubble air flotation project  upgrade to your existing DAF clarifier system. Our AMT will generate  three times more  micro bubbles, all consistently sized  compared to  your old micro bubble generator. We guarantee an  AMT retrofit will  double, if not triple, your existing clarifier water output capacity, if  hydraulically your clarifier’s piping system can  handle the increased  flows. Give us a call.

Principal AMT Operation

Our DAF micro bubble generator (AMT) is an essential  complement to any  dissolved air flotation clarifier. It produces  trillions of  microscopic, uniformly sized air bubbles that attach  themselves to the  suspended particles in water making  them strongly buoyant. Given proper  water conditioning and suitable  fine bubble size. Solids mixtures with  densities higher than that of water can be raised to the surface of a  clarifier tank.


Modern dissolved air flotation systems require that a certain  portion  of clarified water be re-circulated back through some sort of air pump.  What separates  our AMTs from all other designs and makes is that the  AMT micro bubble generator always creates bubbles of proper size with no  coarse air bubbles. Operating this way for years, not weeks, compared  to our competition. Once  introduced into a DAF clarifier tank, they  rise suspended solids in the water to the surface at the  rate of  approximately 8-12 inches per minute creating a thick float on the water  surface of the tank.
