Dissolved Air Flotation is a proven and effective technology for treating a variety of wastewater

FC Maximizer

Water Treatment From The FC Maximizer Creates The Cleanest Water Possible For Countless Industries
More Information

---

RC Unimax

Water Treatment from the RC Unimax is so clean, that companies recycle it in closed loops systems
More Information

---

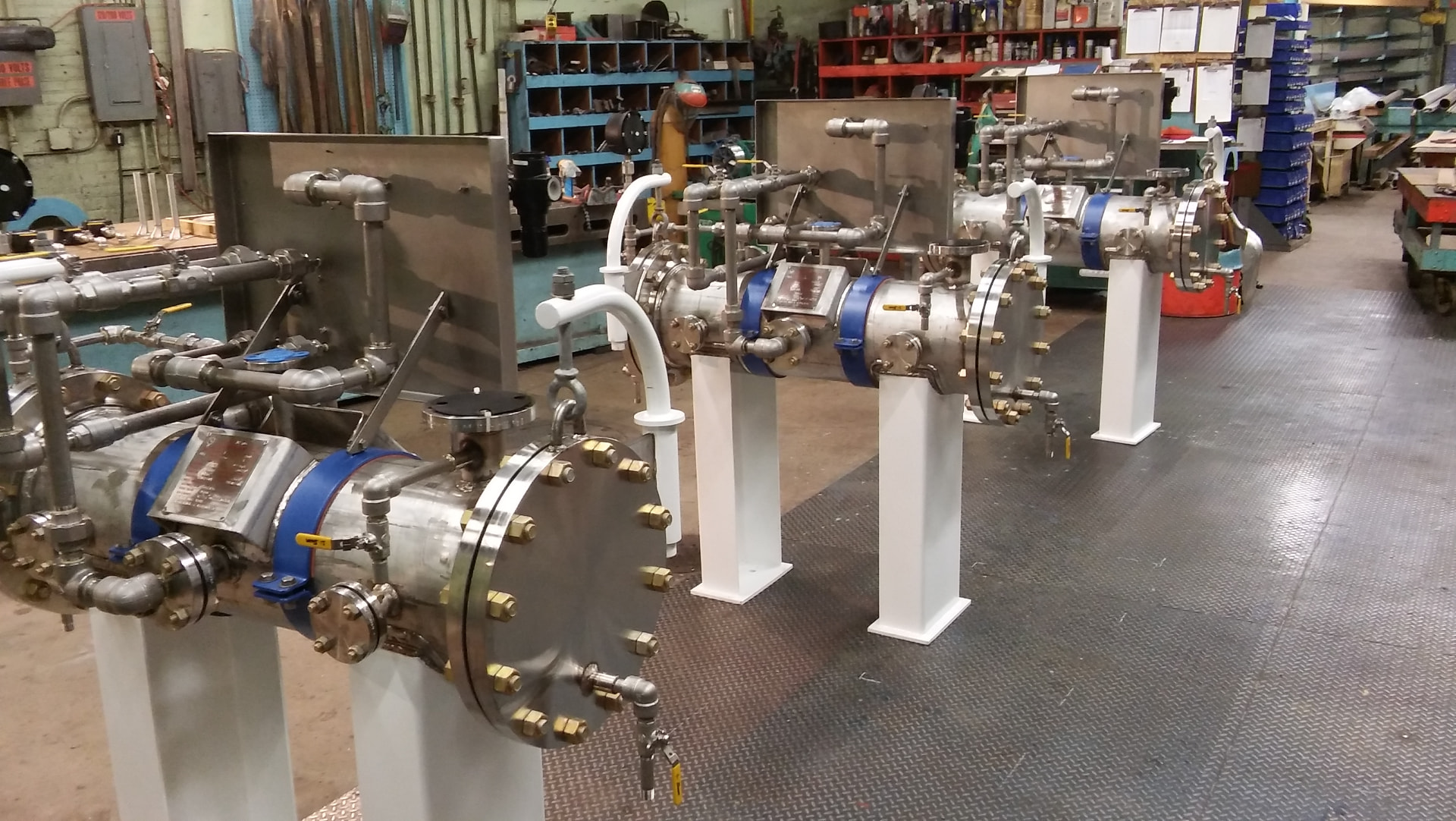

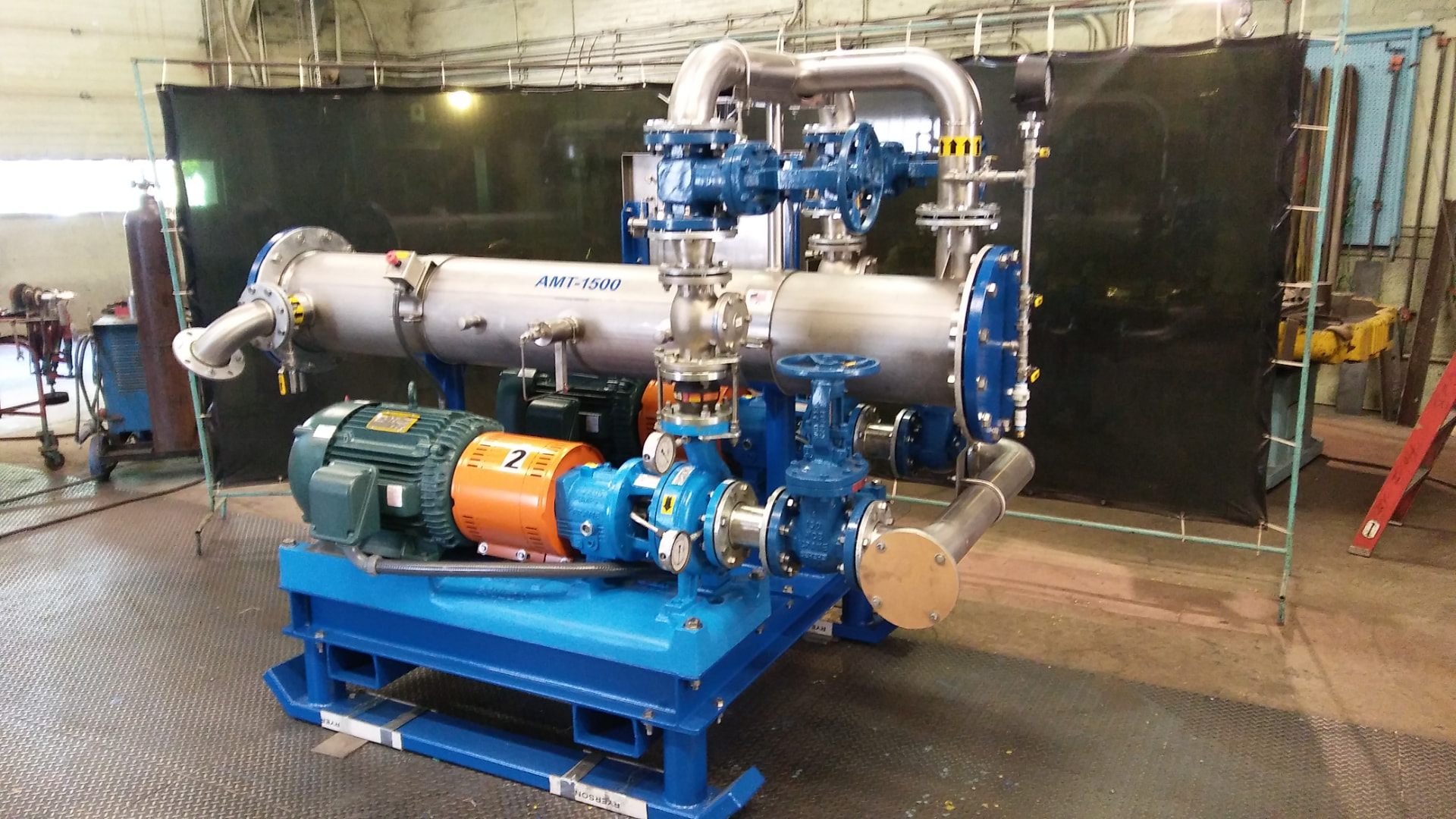

Micro Bubble Generator

Absolutely the best system offered in the market place. Creates consistent size micron bubbles with no coarse air bubbles.
More Information

Royall DAF is a bioscience green water treatment equipment company that meets your DAF clarifier needs. We offer new and retro-fit installations on DAF Clarifiers. We're a company with experience and a proven record of reliability for DAF Clarifiers. Royall DAF designs and manufactures a complete line of dissolved air flotation clarifier systems.

Each industry generates a characteristic wastewater and each has unique treatment problems.Considerable study and supporting information must be analyzed before deriving the best solution to any wastewater treatment problem.To identify and eliminate would-be difficulties, a comprehensive wastewater study is often warranted. This is an up-front cost that must be recognized in order to manage all potential scenarios and to minimize future costs.

Royall DAF offers two types of dissolved air flotation clarifiers, the FC Maximizer and the RC Uni-Max.

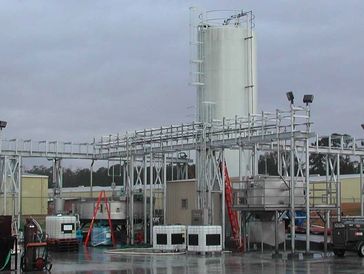

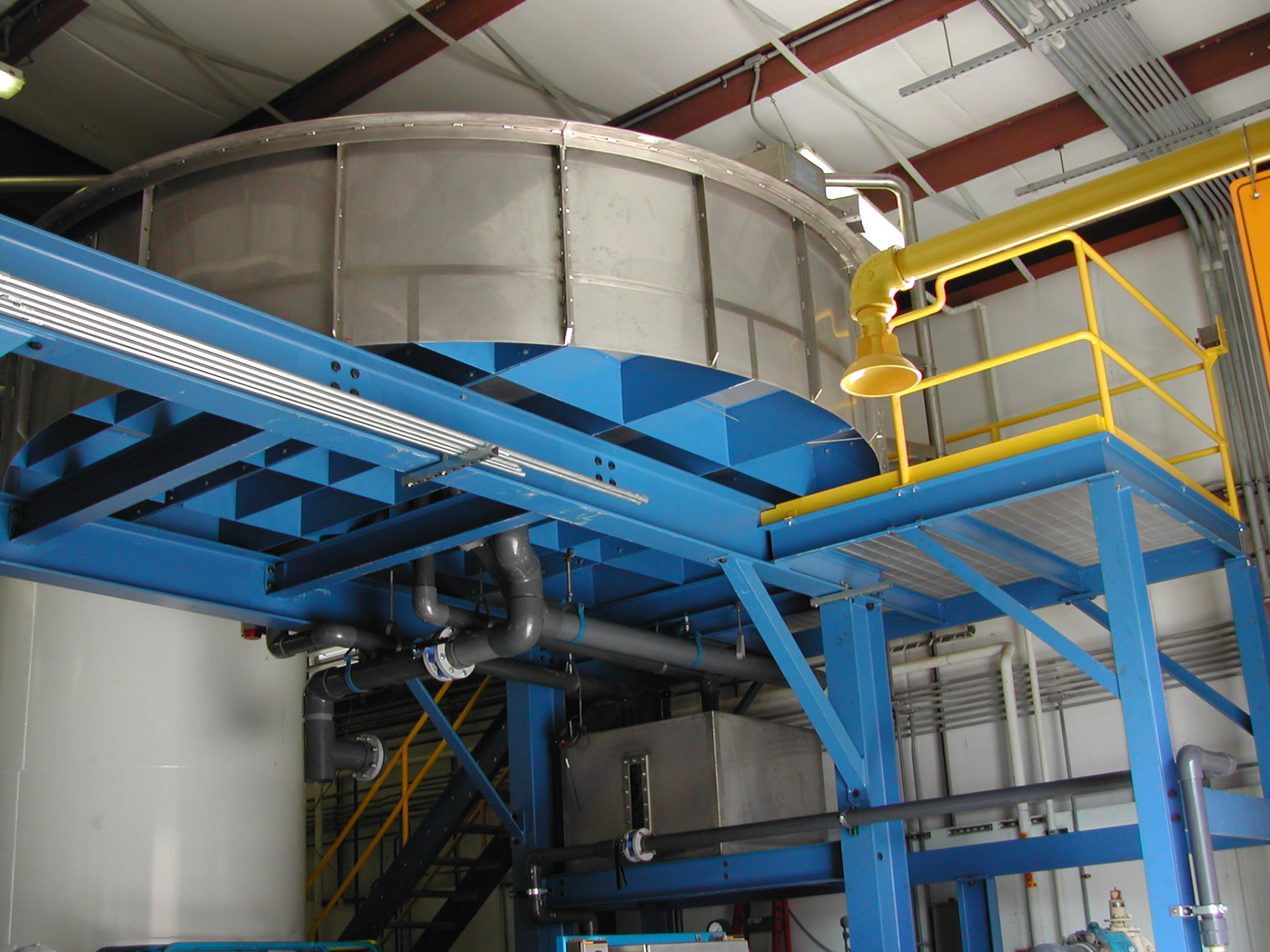

The FC Maximizer clarifier processes raw water flows of 10 gpm. to 11,000 gpm. utilizing the zero velocity concept in a shallow circular tank.

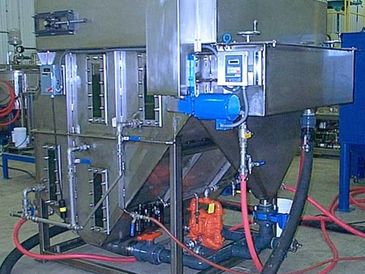

Diameters range from 4 ft to 70 ft. RC UniMax clarifiers are rectangular in shape and are available in a range of sizes to process water flows 20 gpm to 1000 gpm.

Royall DAF conducts laboratory DAF feasibility analysis of process waters, provides on-site pilot feasibility studies, design, manufacturing, and complete installations of a DAF clarifier systems. All labor, parts, and equipment supplied by DAF Corp. are covered by a one-year warranty.

These clarifiers find applications in pulp and paper mills, recycled fiber de-inking, food processing, dairy, dairy manure,algae removal, textile industries, municipalities, before membrane systems, and others. Total suspended solids removal to below 50 ppm of filterable solids and thickened sludge consistency of 2-4% is indicative of the efficient operation of these devices.

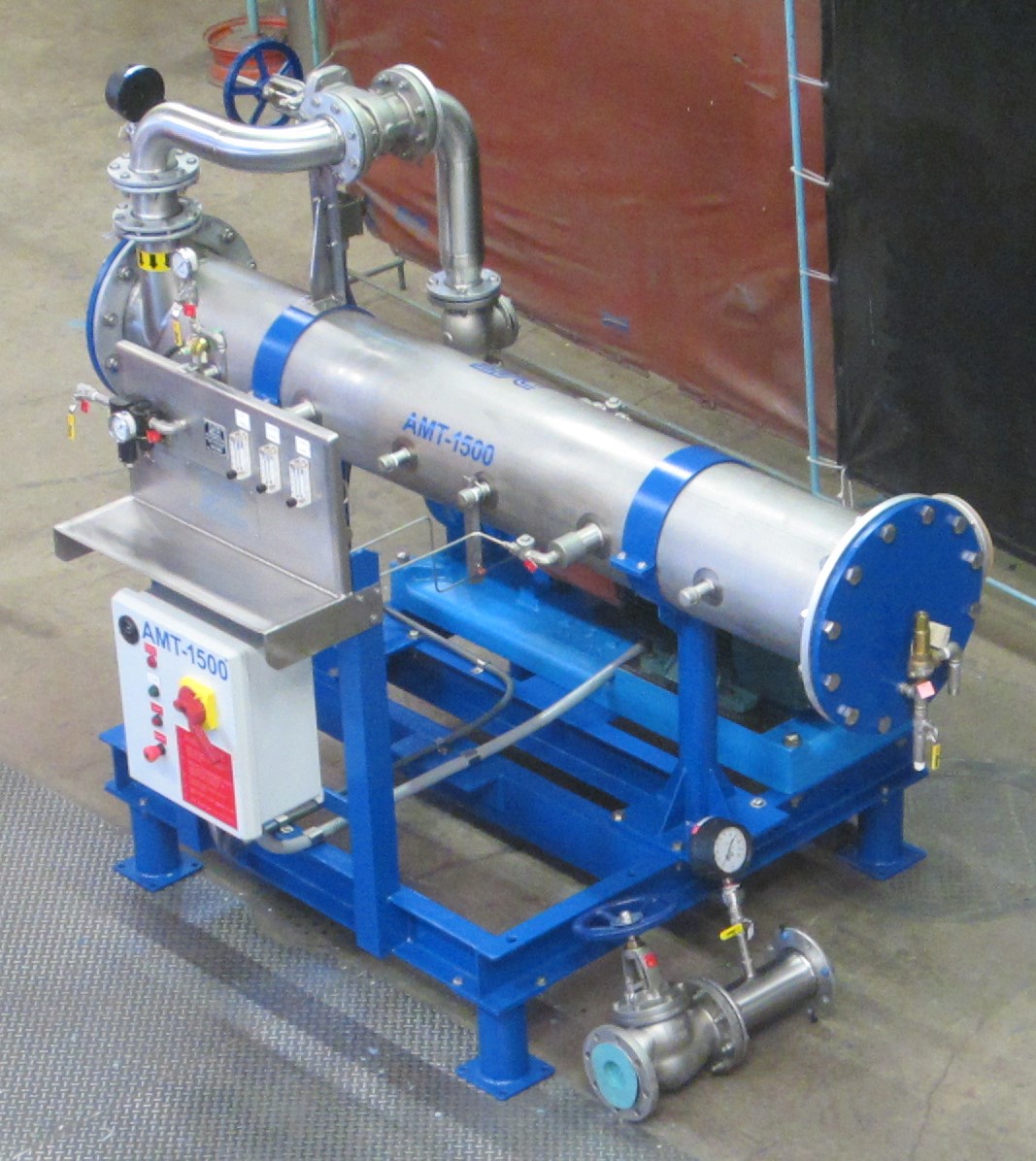

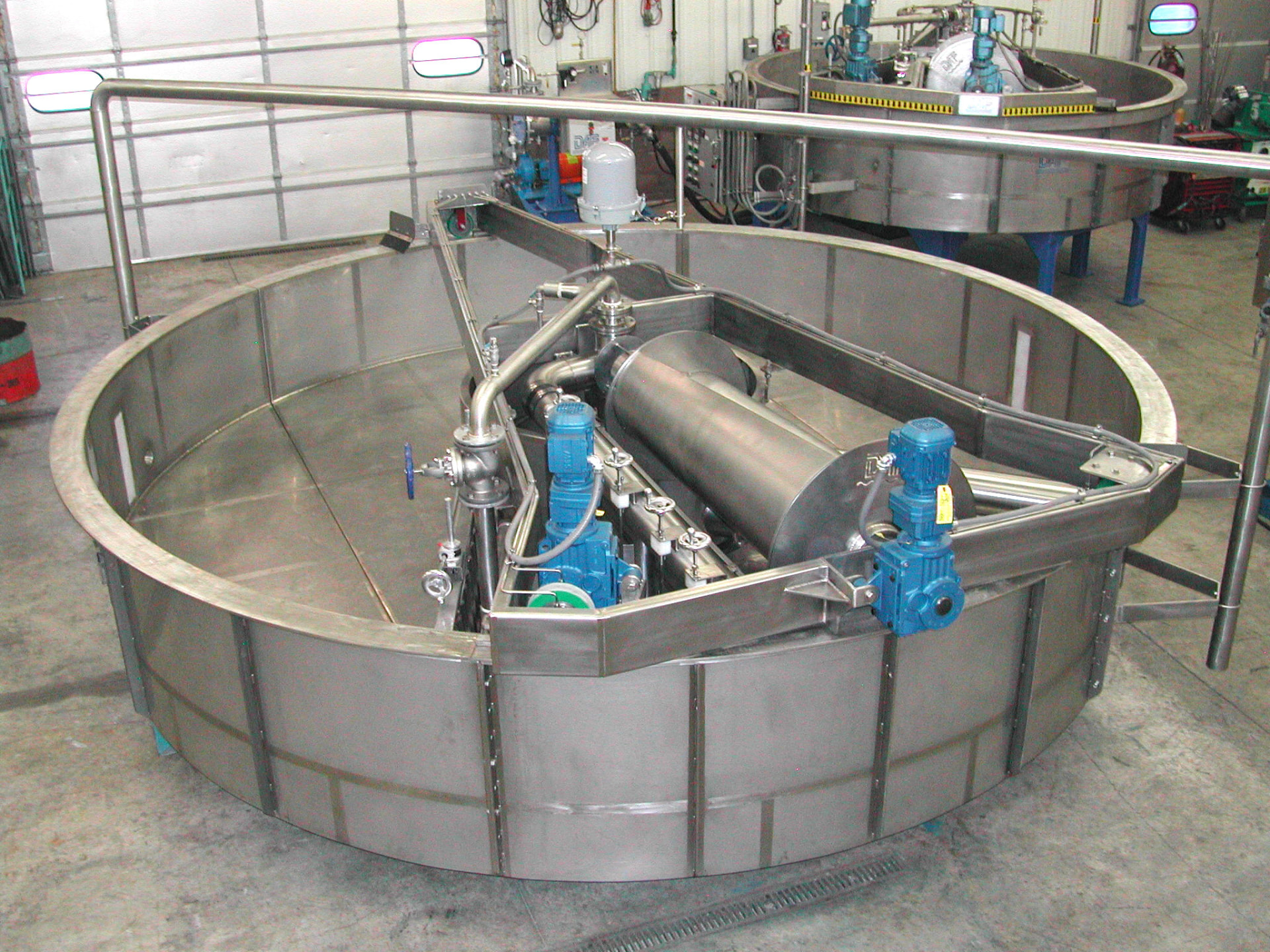

The standard FC Maximizer features an all stainless steel round tank, epoxy painted carbon steel tank bottom supports, side wall stiffeners, heavy duty tank rim, top bridge and catwalks. Units can be fabricated entirely of stainless steel on request. All clarifiers feature a standard sludge cone, clear water separation wall, air mixing tube (AMT), center rotary joint, sludge scoop and top bridge with attached assembly.

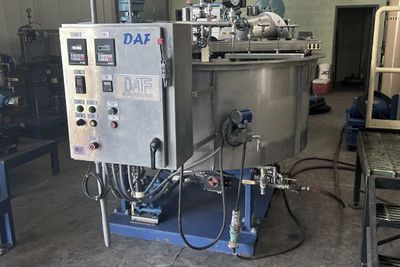

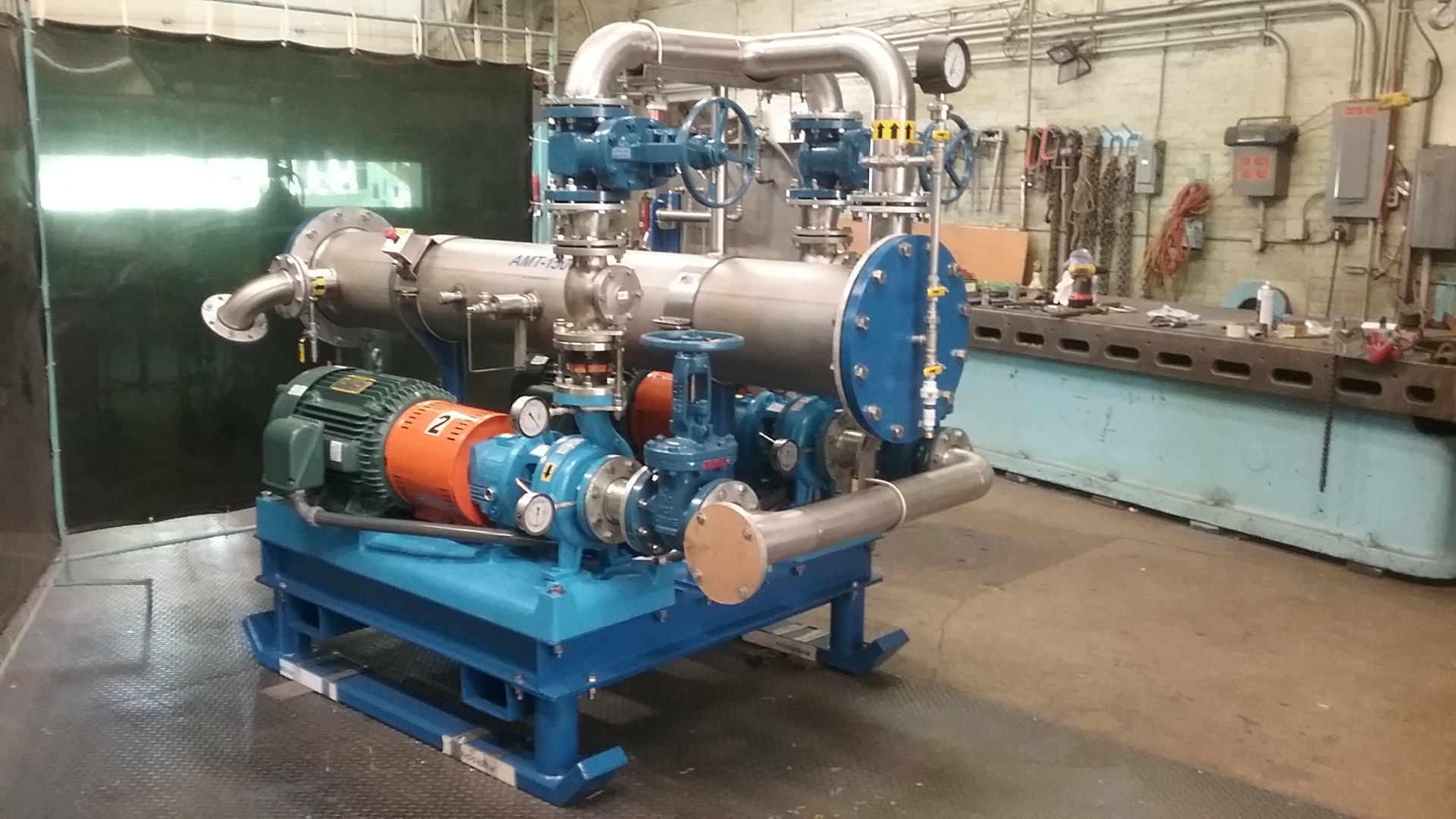

Skid-Mounted FC Maximizers are very popular and preassembled with all ancillary piping, valves, controls, and wiring, ready for operation. Skid-mounted dissolved air flotation clarifiers range from 30 g.p.m. (4' diameter) to 450 g.p.m. (15' diameter).
